V-Trail™
Towable Stand-Alone Power Systems
Power up anywhere with V-Trail from Valen — a rugged, reliable, and safe stand-alone system that’s redefining off-grid energy.
- Minimise Diesel, Maximise Solar
- Ease of Towing and Deployment
- Reliable and Safe Power
Check the V-Trail in Action
Take Reliable Off-Grid Power Further
See how deployable off-grid power can reduce diesel use, improve site reliability, and deliver safe energy anywhere.
Minimise Diesel, Maximise Solar
V-Trail is a smarter alternative to diesel-only power. Its hybrid system combines up to 8.16 kW of solar PV with a 30 kW diesel generator — maximising renewable energy while ensuring reliable backup when it’s needed.
Less fuel. Lower impact. Power you can depend on.

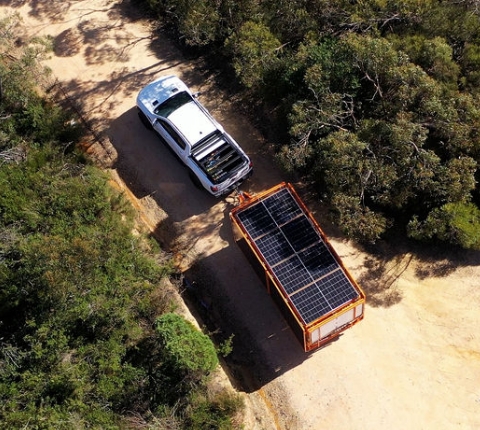

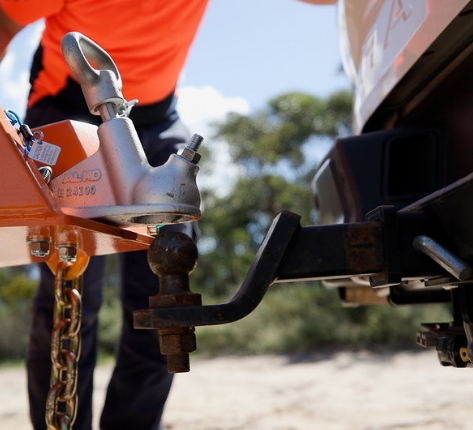

Ease of Towing and Deployment
Valen’s trailer-mounted SAPS comes in at under 3,500kg and is engineered for superior towing and manoeuvrability, making it ideal for rugged and remote environments. Optimized departure angles protect the solar panels during transit, preventing damage on uneven terrain. Gas struts support a fast, straightforward setup in under ten minutes with two operators — so V-Trail can deliver power where and when it’s needed, fast.
Operators must ensure the selected towing vehicle and configuration are suitable for the V-Trail system and meet all applicable safety and compliance requirements.
Reliable and Safe Power
Valen’s industry-leading inverters are designed to handle high fault currents and minimise parasitic loads; ensuring they meet strict electrical safety requirements while delivering you an efficient system. Our priority is safety and real-world performance. Built to globally recognised benchmarks, Valen’s V-Trail delivers trusted reliability, protection, and peace of mind.
Rugged, Remote, and Reliable Off-Grid Energy
The V-Trail units are designed as fully functional hybrid systems incorporating solar PV, lithium battery storage, and a diesel generator, all while incorporating off-road capabilities.
System Features
Industry-leading inverters
Featuring high surge capability and extremely low parasitic load consumption
8.16kW peak solar
PV mounted on a trailer, deployable by a single operator via a gas-strut mechanism.
Maximum MPPT charge power of 35kW
Allowing for future PV expansion via solar mat or skid.
43kWh of lithium iron phosphate (LiFePO₄)
Battery storage, utilising nine 4.8kWh modules.
Power your potential with Valen Power
Specifications
The configurations below represent the standard size for Valen’s Towable
Stand Alone Power System (V-Trail™).
| PV Array | Total PV Array Size (kWp) | 8.16kWp |
|---|---|---|
| Energy Storage | Nominal Voltage (VDC) | 48VDC |
| Nominal Capacity | 43kWh | |
| Battery Chemistry | LiFePO4 | |
| Bi-Directional Inverter | Nominal Voltage (VDC) | 48VDC |
| AC Output Voltage | 230/240VAC | |
| Generator | Backup Generator Rating (kVA) | 30kVA |
| Fuel tank (Low CoG trailer base mount) | 100L | |

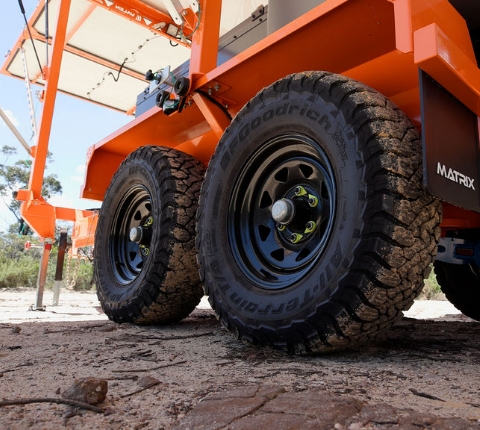

| Trailer | Dual Axle Trailer | Cruisemaster CRS Independent suspension |
| Trailer Material | Australian Milled Steel - 350 Grade high tensile, 6mm Checkerplate Aluminium Deck Plates |
Please Note: Operators must ensure the selected towing vehicle and configuration are suitable for the V-Trail system and meet all applicable safety and compliance requirements.
What’s Under the Hood?
Complete the form below to receive the V-Trail technical brochure and detailed system specifications.
Take Reliable Off-Grid Power Further
See how deployable off-grid power can reduce diesel use, improve site reliability, and deliver safe energy anywhere.
Premium Energy Management System
Empowering electricity networks through advanced energy management, Vonnect is designed to optimise asset control, streamline network operations, and reduce environmental impact. By centralising comprehensive monitoring and providing seamless control across critical power assets, we enable network operators to minimise field visits, cut operational costs, and focus their teams on high-value tasks.
Control every site, every component from any location - effortlessly.
Vonnect is an agnostic, all-encompassing remote monitoring and management platform to track, analyse and optimise the performance and management of your assets. Single dashboard for all data points including batteries, temperature, door alarms etc. If you think it, we can monitor it from this dashboard..
Seamless integration for Future-Proof Efficiency
The main job of the Energy Management System is to make sure everything is working together and synchronised. Valen’s monitoring solution can take a variety of protocols and feed out a selected protocol. Valen’s EMS also has the ability to introduce new protocol drivers as technology changes.
Dynamic and adaptable
Vonnect is designed for flexibility, allowing it to adapt as operational requirements change. New drivers and communication protocols can be added as needed and quickly deployed to the EMS, ensuring the system remains ready without disruption. With 34 digital and analogue input and output points, Vonnect can manage a wide range of applications across diverse environments. Its low power consumption further enhances overall system efficiency, supporting reliable performance without adding unnecessary load.
Cyber-security
Cyber security is and should be at the forefront of community battery deployment. Vonnect comes with agnostic integration to all components through a control and monitoring network. This enables a single login and control from one platform and can be tailored to requirements.
Discover
We work to understand your needs, challenges and opportunities.
Design
We work to understand your needs, challenges and opportunities.
Deliver
We strive for excellence in procurement, dispatch and delivery.
Support
We support you for the life of your system.
