ModX2

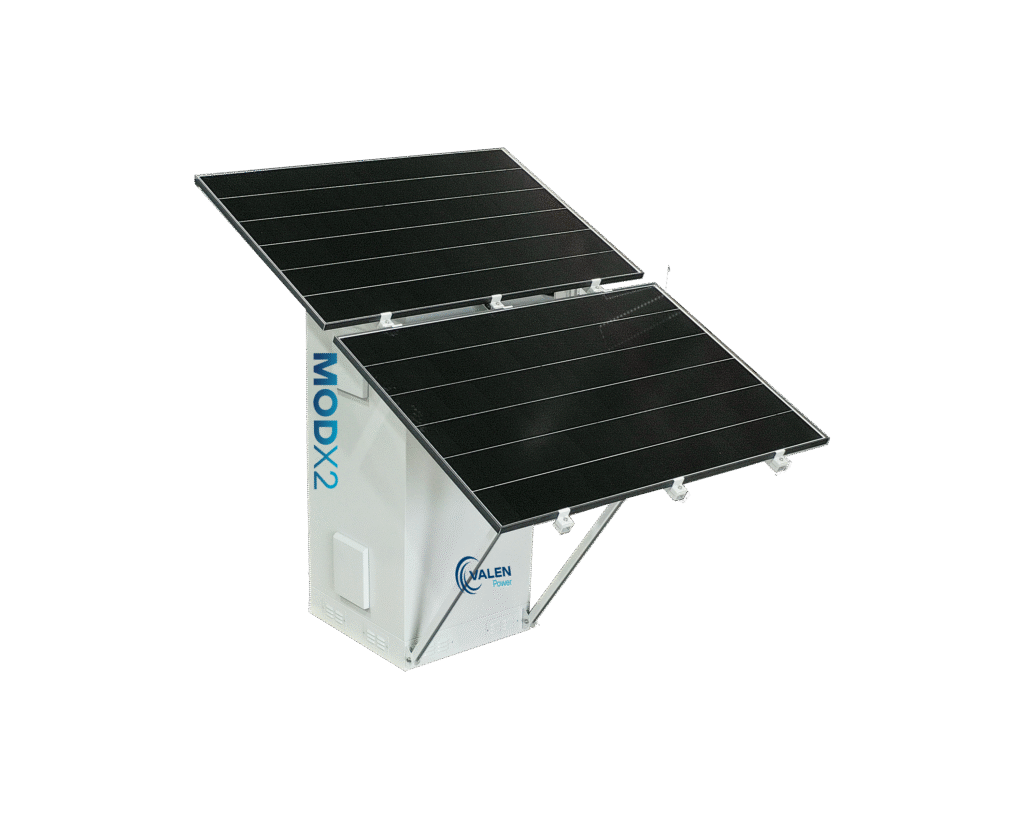

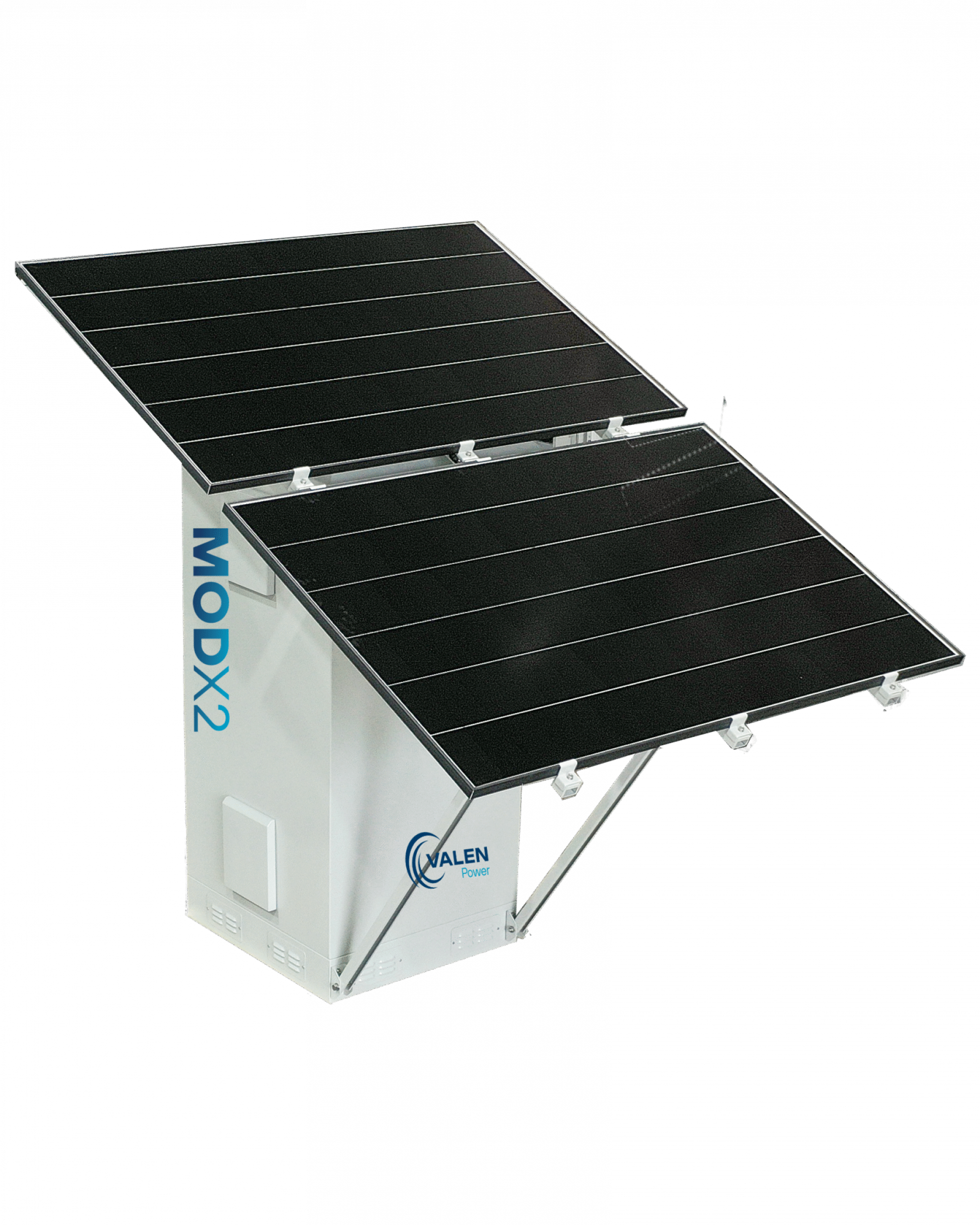

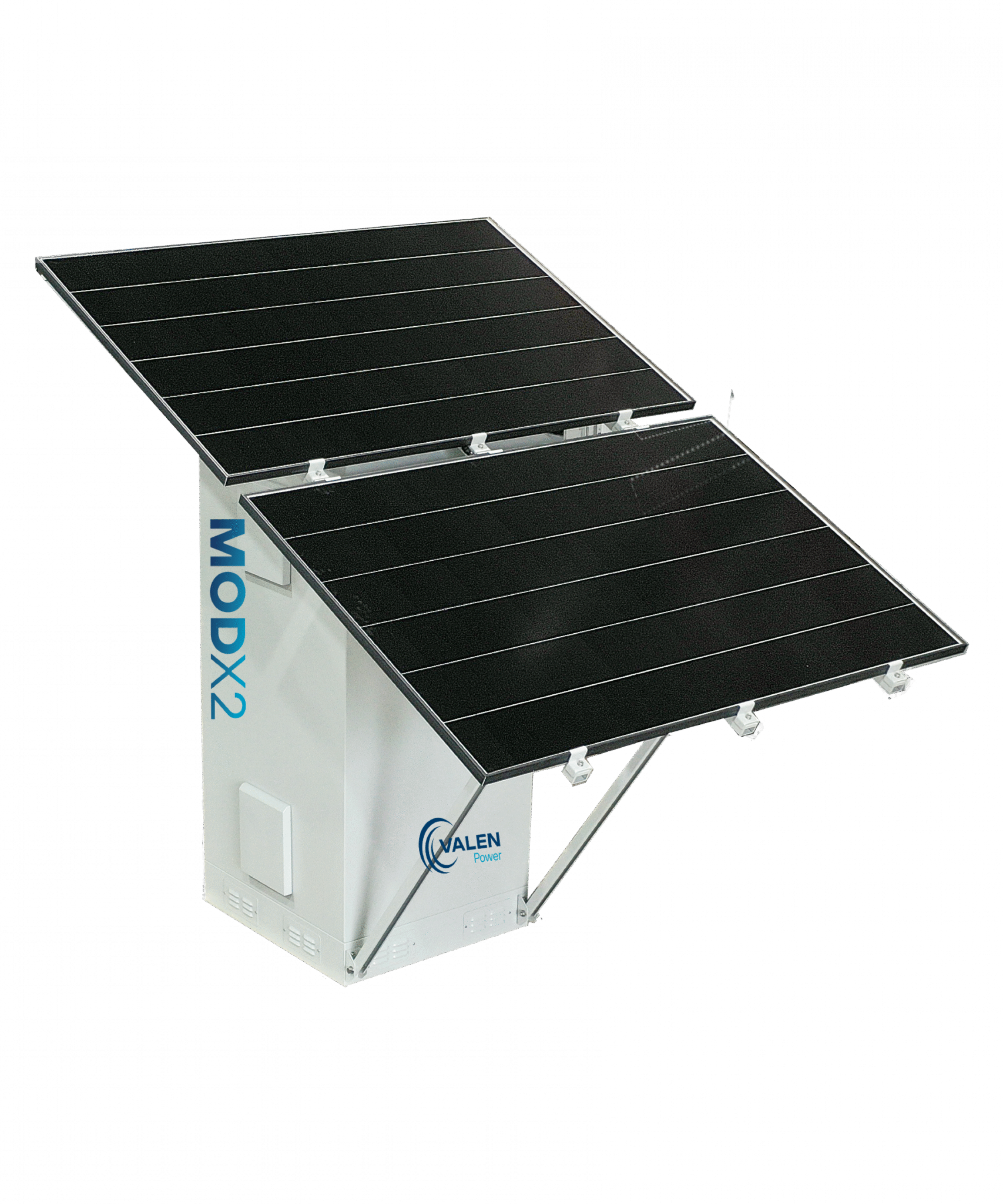

ModX2 Off-Grid Solar Power Systems for Remote Sites
When critical equipment needs power in remote locations, the ModX2 delivers.
The Valen ModX2 is a fully integrated, pre-engineered solar energy storage solution manufactured by Valen Power. This turnkey system combines solar generation, lithium battery storage, power conversion, and intelligent energy management in a single weatherproof outdoor enclosure.
Every element has been factory-integrated, pre-wired, tested, and certified before leaving our facility in Lawson, Australia. This plug-and-play approach eliminates field integration challenges, reduces installation time by up to 70%, and ensures optimal component compatibility and system performance from day one.
As automation, digital infrastructure, and AI-driven technologies continue to advance, stable and reliable power in isolated regions is becoming more essential than ever. The ModX2 is engineered to meet that demand.
Check the ModX2 in Action
Fully Certified
The Modx2 arrives fully pre-wired, pre-tested, and structurally certified to AS 1170.2 Wind Region C, Importance
Level 2 — before it leaves our facility in NSW, Australia. Full structural engineering documentation is included as standard, eliminating the need for separate certification and the weeks of project time it typically consumes. For regulated infrastructure operators where compliance is non-negotiable, this sets the Modx2 apart from day one.
Rapid Deployment
The Modx2 is held in stock, with standard systems ready to dispatch within one week of order placement. Every unit has been factory tested and fully documented before entering stock, so what arrives on site is a certified,
commission-ready system — not components that still need work. For projects where timing matters, the Modx2 is ready when you are.
Supported as a System

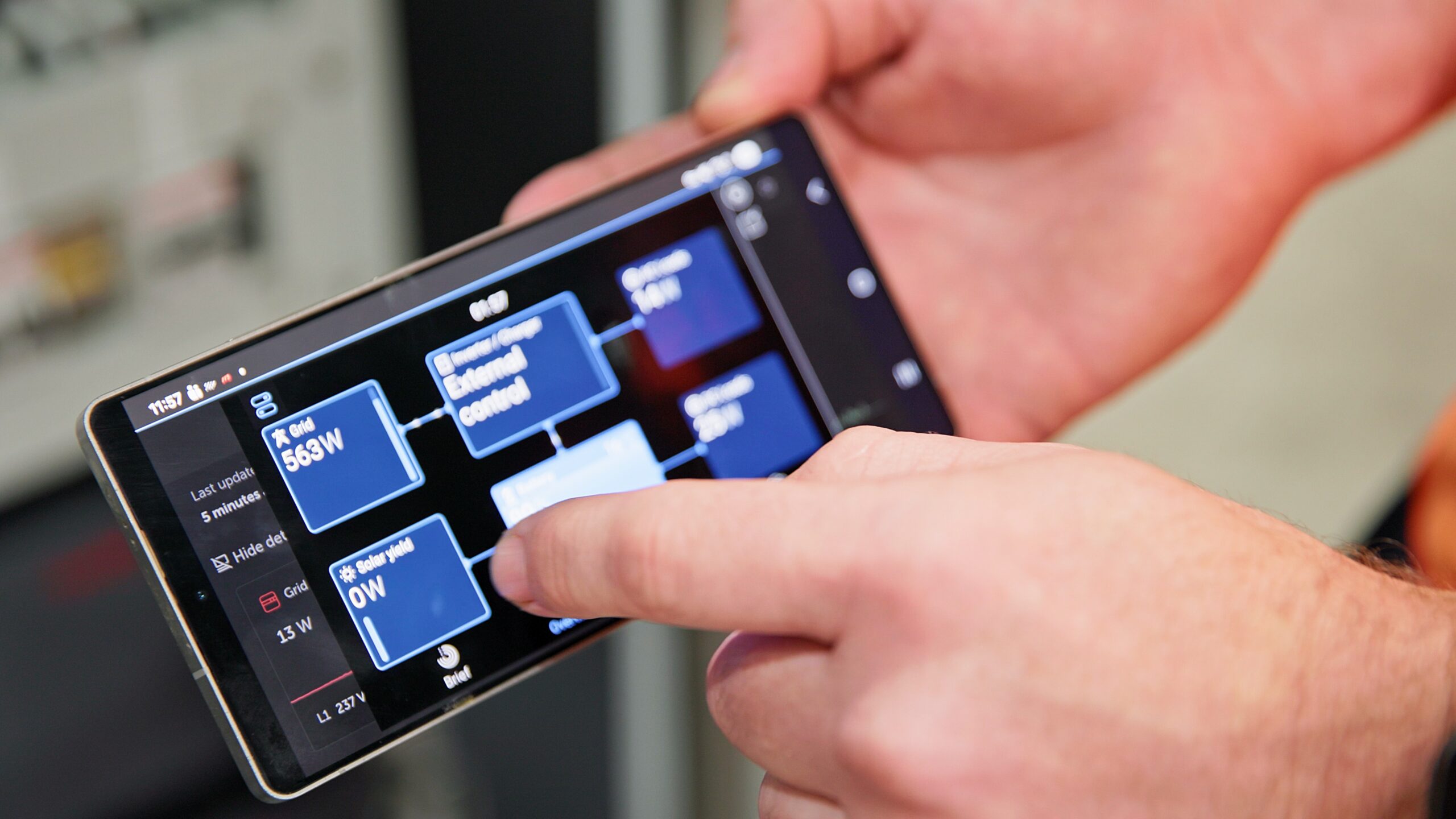

Because every component is integrated and tested by Valen Power at our Australian facility, the entire system carries a single warranty and a single support contact. Remote diagnostics via the Victron Remote Monitoring portal means most issues can be identified and resolved without a site visit, and spare parts are stocked locally for same-day
dispatch. You have the backing of a manufacturer invested in the long-term performance of your system.
Remote Power Made Simple
For small-scale remote power, the ModX range offers a faster, simpler, and more cost-effective path to deployment, with the added advantage of portability for redeployment on future projects.
Power your potential with Valen Power
ModX2 Specifications
| Key Features | Pre-engineered and pre-wired |
|---|---|
| Solar Capacity | 990Wp |
| Solar Charge Controller | Victron BlueSmart MPPT 100/20 (98% peak efficiency) |
| Panel Angle | 25° Fixed Tilt |
| Enclosure | Stainless Steel |
| Enclosure Locking | 3pt Padlockable locking |
| Cooling | Fan Cooled |
| Battery Technology | LiFePO₄ (Lithium Iron Phosphate) |
| Battery Capacity Options | 5.12 kWh / 10.24 kWh / 15.36 kWh |
| Battery Cycles | 6000 (80% DoD) |
| Battery Charger | 48V 13A |
| Battery Controlled Charging | Yes |
| DC-DC Converter | 48/24-12A |
| Nominal Voltage | 51.2V DC |
| Dimensions | 2183mm (L) x 850mm (W) x 811mm (H) |
| Designated Available Equipment Space | 4RU+ |
| Monitoring Standard | Victron VRM portal (Modbus TCP/IP, Ethernet, mobile app) |
| Certifications | Structurally certified to AS1170.2 Wind Region C, Importance Level 2. |
Need a larger scale solution?
Find out more about the full ModX range.
Need a smaller solution?

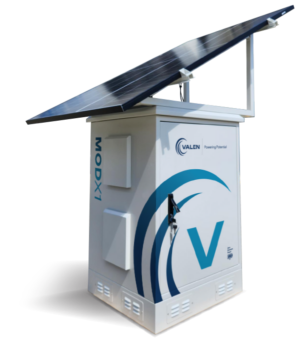

Find out more about our ModX1 range.
Applications
Communications
- LoRaWAN Gateways and End-Nodes
- Radio and Microwave Communications
- Wireless Hot Spots, Wi-Fi, Private LTE, and CBRS
Obstruction Lighting
- Broadcast and Communication Towers
- High Tension Power Lines
- Wind Turbines
Transportation
- Rail Car Tracking
- Traffic Management
- Traffic Monitoring
Environmental
- Air Quality Monitoring
- Cathodic Protection
- Flow Metering
- Seismic Monitoring
- Structural Integrity Monitoring
- Weather Monitoring
Security
- Emergency Alert Boxes
- Gate Access
- Mustering Stations
- Perimeter Monitoring
- Security Cameras
Oil and Gas/Pipeline/ Water/Wastewater
- Block Valve Actuation
- Cathodic Protection
- Flow Metering
- Pipeline Custody Transfer
- PLC and RTU Systems
- Wellhead Controls
Recent Case Study

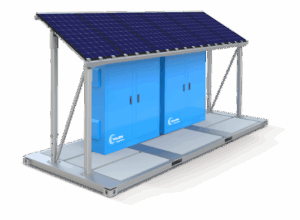

ModX1 for Sydney Metro Southwest Rail project
Client: UGL Location: Sydney, NSW Completion: 2025 System Supplied: 83 x Custom Engineered Solar Battery Systems Discover Sydney Metro is developing Australia’s most advanced rail system, featuring fully automated, driverless trains. A critical aspect of the Sydney Metro project is ensuring the safety of passengers and the public around these new automated rail services. To […]
