ModX1
Reliable power, anywhere.
When critical equipment needs power in remote locations, the ModX1 delivers.
Pre-engineered, pre-wired, and pre-tested, this compact solar system is ready to deploy without costly footings or custom builds. From environmental monitoring and SCADA systems to wireless networks and telemetry, ModX1 makes reliable, small-scale, off-grid power simple.
Rapid Deployment
— pre-built and ready to run
Cost Efficient
— saves time and money on build and installation
Guaranteed Compatibility
— all components tested as a complete system
Scalable & Flexible
— adapts to different site demands
Remote Monitoring
— integrated EMS for visibility and control
Why Build from Scratch When the ModX1 Does It Better, Faster, and Cheaper?
Remote Power Made Simple
For small-scale remote power, the ModX1 offers a faster, simpler, and more cost-effective path to deployment, with the added advantage of portability for redeployment on future projects.
Quick and Easy Installation
Valen’s ModX1 is designed for quick and easy installation, ensuring minimal downtime and reduced labor requirements. With all components weighing under 80kg, transportation and handling are simplified, allowing for effortless site deployment. The unit is securely fastened to the ground using dynabolts, streamlining the installation process. Additionally, the solar panels can be installed at ground level, eliminating the need for elevated work platforms or extensive WHS equipment, further enhancing safety and efficiency on-site.

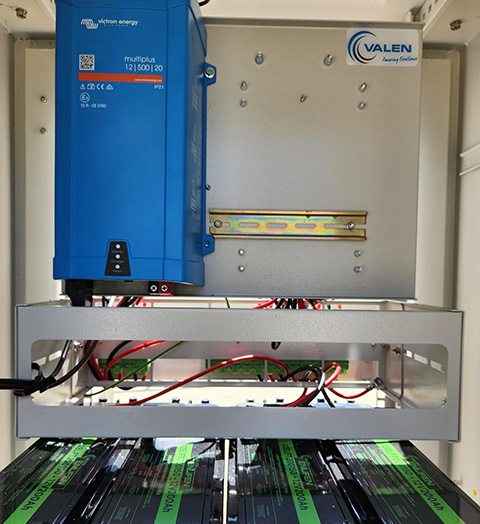

Prewired Cabinet with Plug-and-Play Solar Panel Connection
Valen ModX1 system comes prewired which deskills the deployment of these cabinets. No longer are qualified technicians required to understand all the components in the system and how they work, Valen has down the heavy lifting. All thats requried is connecting the batteries up and plugging in the solar.

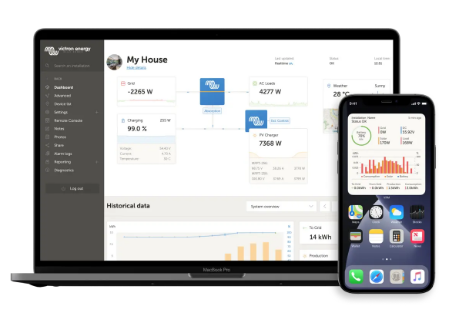

Fully Integrated and Remotely Monitored System
Valen’s ModX1 system utilitise Victron Energy components which all speak to each other and work seemlessly together. no longer is there a need to check compatibility of components, how they’ll install into the cabinet etc. All components communicate with each other and the Cerbo has the ability to connect remotely to Victron Remote Monitoring cloud platform.
Calculator
"*" indicates required fields
| Solar Array | 440w |
|---|---|
| Victron Solar | 50A |
| Enlifen | 408Ah |
| System Voltage | 12v |
| Monitoring Kit | Yes |
| 4G Support | Yes |
Power your potential with Valen
ModX1 Specifications
| Key Features | Pre-engineered and pre-wired |
|---|---|
| Solar Capacity | 440Wp |
| Solar Charge Controller | 50A |
| Panel Angle | 30° |
| Panel Mounting | Stainless Steel |
| Enclosure | Powder Coated Stainless Steel |
| Enclosure Locking | Twin door 3pt Padlockable locking |
| Battery Technology | ENLIFEN LiFePO4 |
| Battery Capacity | 2.4 to 9.6kWh |
| Battery Cycles | 6000 (80% DoD) |
| Power Outputs Available | 12V, 24VDC standard. (AC Optional) |
| Dimensions | 700mm (L) x 750mm (W) x 2500mm (H) |
| Designated Available Equipment Space | 10RU+ |
| Monitoring Standard | Cloud, Modbus TCP/IP, VRM Platform |
| Monitoring Options | SNMP. DNP3, Satellite |
| Foundations | Pre-engineered foundations upon request. |
Applications
Communications
- LoRaWAN Gateways and End-Nodes
- Radio and Microwave Communications
- Wireless Hot Spots, Wi-Fi, Private LTE, and CBRS
Obstruction Lighting
- Broadcast and Communication Towers
- High Tension Power Lines
- Wind Turbines
Transportation
- Rail Car Tracking
- Traffic Management
- Traffic Monitoring
Environmental
- Air Quality Monitoring
- Cathodic Protection
- Flow Metering
- Seismic Monitoring
- Structural Integrity Monitoring
- Weather Monitoring
Security
- Emergency Alert Boxes
- Gate Access
- Mustering Stations
- Perimeter Monitoring
- Security Cameras
Oil and Gas/Pipeline/ Water/Wastewater
- Block Valve Actuation
- Cathodic Protection
- Flow Metering
- Pipeline Custody Transfer
- PLC and RTU Systems
- Wellhead Controls
Recent Case Study

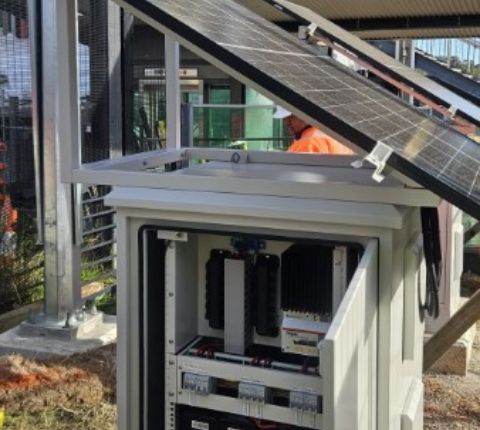

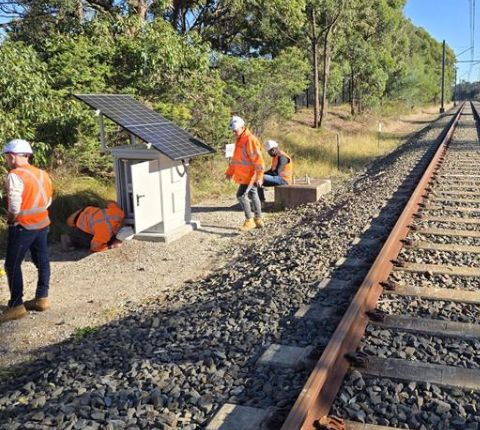

ModX1 for Sydney Metro Southwest Rail project
Client: UGL Location: Sydney, NSW Completion: 2025 System Supplied: 83 x Custom Engineered Solar Battery Systems Discover Sydney Metro is developing Australia’s most advanced rail system, featuring fully automated, driverless trains. A critical aspect of the Sydney Metro project is ensuring the safety of passengers and the public around these new automated rail services. To […]
